Floor plan imaging

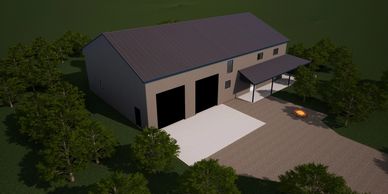

Outside Imaging

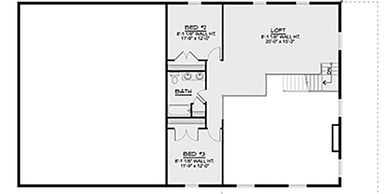

Upper Floor Plan

Outside Imaging

You definately get a good idea of the project when exploring all the images at different different angles from the outside. Exploring the interior provides an extra value that may totally change the outward appearance after modifications are sometimes made.

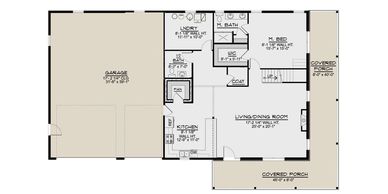

Main Floor Plan

Upper Floor Plan

Outside Imaging

Plans sometimes don't give a relative size when compared to a 3D rendering shown with furniture that puts the perspective in real terms. Finding out what will fit in what precise area will definately be visible in this three dimensional setting.

Upper Floor Plan

In this upper floor plan setting using a 3D model, views from every point can help the homeowner make critical decisions on details such as railings, stairways, paint colors as well as interior materials and products.

Mountain Cabin (Barndominium)

Building Exterior

This rendering video captures the details of the exterior of the house. It not only captures the design of the structure but shows shadows that may affect designing areas such as a porch area or pergola structure.

Interior - Main Floor

This video of a main floor plan creates a vision of what is possible in a different way than any two dimensional drawing or plan can inspire. Placement of critical rooms or entry ways can clearly be seen. Also whether you have the necessary room to comfortably put the closets, auxiliary rooms as well as appliances that will be housed there.

Interior - Upper Floor

This upper floor video demonstrates the overall look of the interior when it all comes together. Views from the interior for outside views (meaning optimal window placement) as well as placement of strategic furniture items can influence if the plan actually works for you.

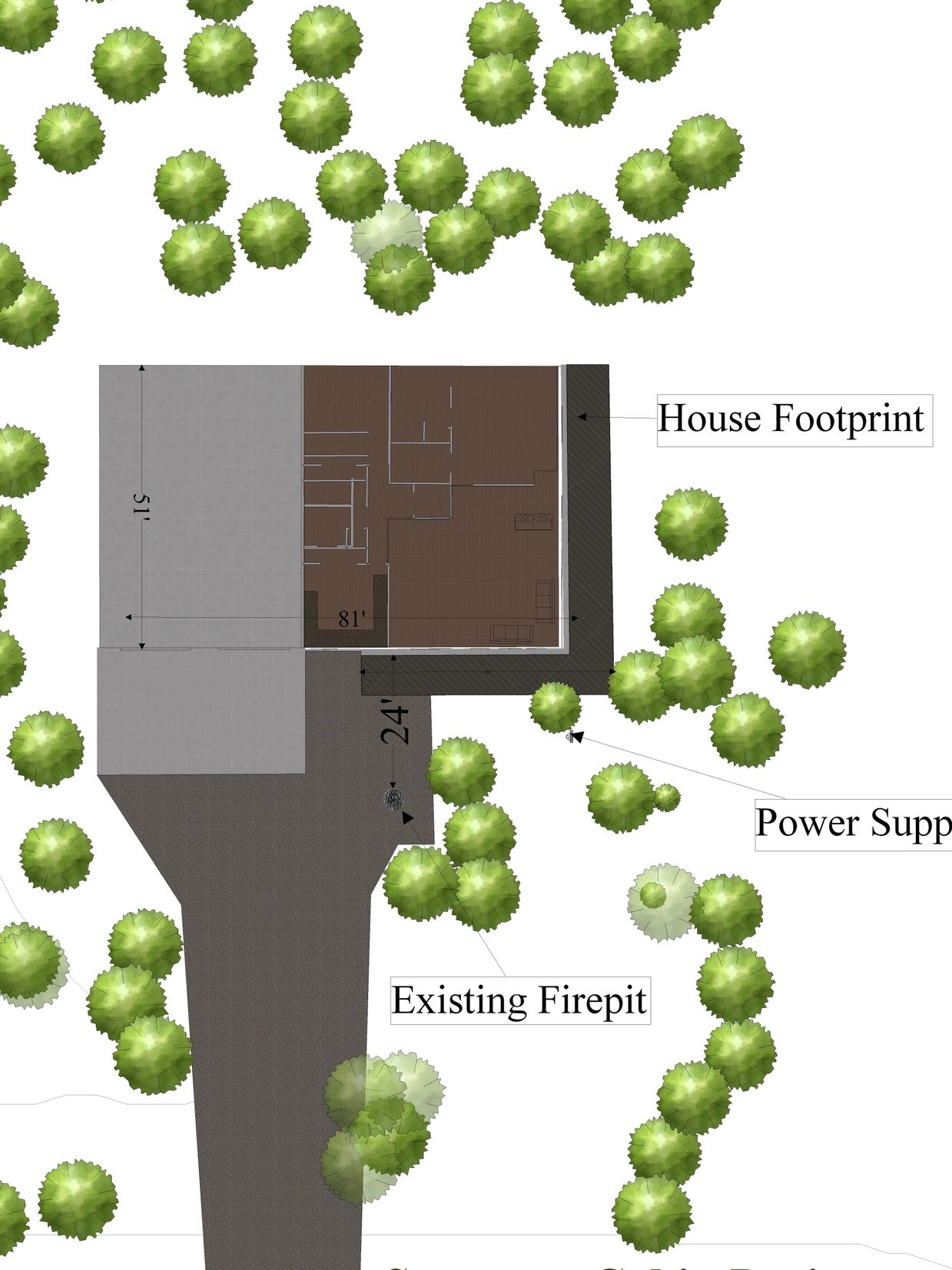

Placement

Benefits Of 3D Generated Markups

Once your 3D design is approved, I generate dimensioned markups and layout guides so your crew builds exactly what you signed off on—no guesswork. These annotated plans translate the 3D vision into precise field measurements, elevations, slopes, and offsets, giving installers a clear roadmap from day one.

Fewer change orders: Clear scope everyone can see and measure.
Accurate takeoffs: Reliable quantities for concrete, pavers, stone, plants, and lighting.
Build-to-spec layout: Centerlines, offsets, grade arrows, and patio pitch for proper drainage.
Coordination across trades: Irrigation zones/valves, electrical runs, sleeves, and footing locations.
HOA/permit friendly: Visuals that speed approvals and align expectations.
Phasing & access: Equipment paths, staging areas, and protection zones planned in advance.
Client confidence: Sun/shade studies, night-lighting previews, seasonal plant growth.
Cost control: Value-engineering in 3D before anything is purchased or poured.
As-built record: Final markups for warranties and future maintenance.

What I deliver

Plan view with dimensions, elevations, and slopes
Sections/elevations for walls, steps, pergolas, pools/spas
Staking points, grid/layout references, and printable PDFs
Optional CAD exports (DWG) and materials takeoff sheets
